Sanitary Replacement Tube Bundle| Product | Style | Design | Configuration |
|---|---|---|---|
| Tube Bundle | Shell & Tube | 3-A Sanitary | Straight Tube |

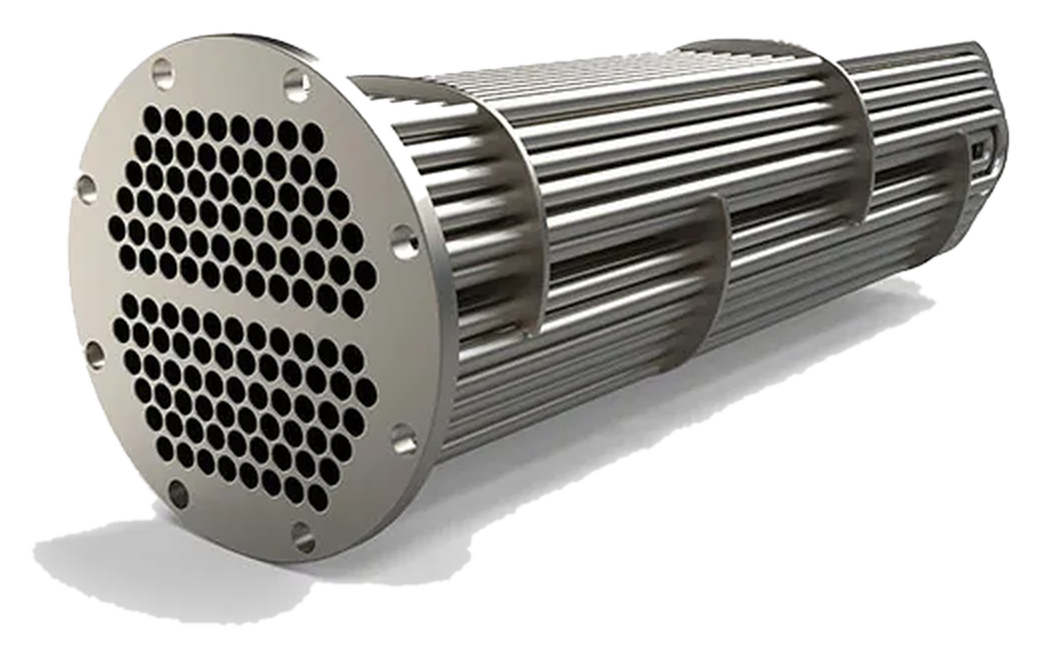

Note: Unit pictured is representative of standard unit and may not exactly depict p/n 339989-RE as shown on this page.
Description
The 339989-RE is a 3-A Sanitary replacement tube bundle, O-ring head design, for a 6" diameter x 54" long sanitary steam-to-water shell and tube heat exchanger. It is built with all 316 stainless steel tubes and drops into the existing shell in place of the original bundle, so a fouled or damaged bundle is changed without replacing the shell, heads or piping. It is the spare bundle for the 654O25C10C-31620T2-3A complete unit.
Product Overview
Part Number:
339989-RE
Series:
Replacement Bundles
Design:
3-A Sanitary
Head Closure:
O-Ring
Configuration & Size
Fits Shell:
6" Diameter x 54" Long
Tube Side Passes:
Two Pass
Materials of Construction
- Tubes: 316 Stainless Steel
- Tubesheet: Stainless Steel
- Head Seal: O-Ring
Rating
- Max Temperature: 375°F
- Max Pressure: 150 PSI
